Sleeps 5
-
3 Slides
-
Bath and a HalfRear Bath
-
45ft Long
-
44,200 lbs
-
Barton, Haven, Linley, Seahaven

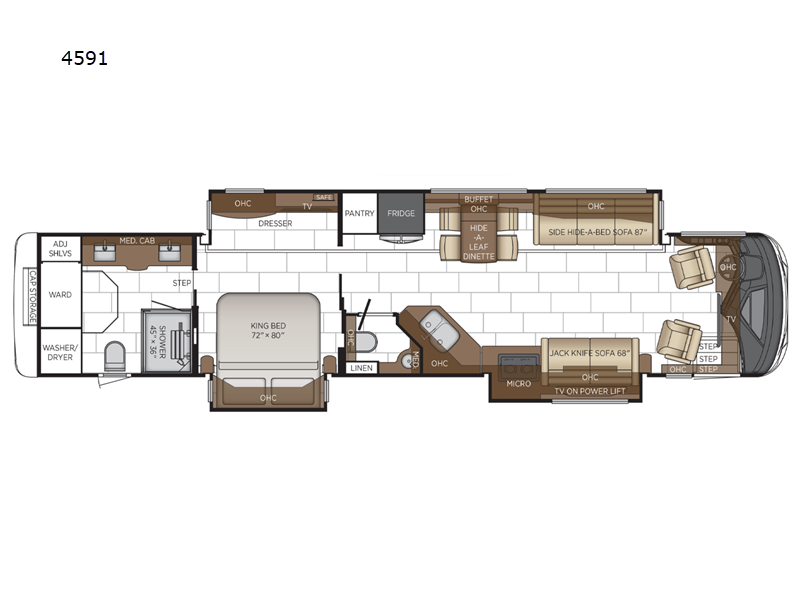

4591 Floorplan
Specifications
Sleeps | 5 | Slides | 3 |
Length | 44 ft 10 in | Ext Width | 8 ft 6 in |
Ext Height | 13 ft 2 in | Int Height | 6 ft 11 in |
Interior Color | Barton, Haven, Linley, Seahaven | Exterior Color | Eton, Forres, Hawick, Invertness |
Hitch Weight | 15000 lbs | GVWR | 54000 lbs |
Dry Weight | 44200 lbs | Cargo Capacity | 9800 lbs |
Fresh Water Capacity | 105 gals | Grey Water Capacity | 80 gals |
Black Water Capacity | 60 gals | Furnace BTU | 50000 btu |
Generator | 10 Kw Cummins Onan Diesel | Fuel Type | Diesel |
Engine | Cummins 11.9L | Chassis | Spartan K3 Tag Axle |
Horsepower | 525 hp | Fuel Capacity | 150 gals |
Wheelbase | 318 in | Available Beds | King |
Torque | 1695 ft-lb | Refrigerator Type | Whirlpool |
Refrigerator Size | 19.7 cu ft | Convection Cooking | Yes |
Cooktop Burners | 2 | Shower Size | 45" x 36" |
Number of Awnings | 2 | Axle Weight Front | 20000 lbs |
Axle Weight Rear | 20000 lbs | Axle Weight Tag | 14000 lbs |
Water Heater Type | Demand | AC BTU | 30000 btu |
TV Info | LR Samsung LED TV, BR Samsung LED TV | Awning Info | Nova Power |
Washer/Dryer Available | Yes | Gross Combined Weight | 69000 lbs |
Shower Type | Shower w/Seat | Electrical Service | 50 amp |
Description
Newmar Mountain Aire Class A diesel motorhome 4591 highlights:
- Bath and a Half
- Two Sofas
- King Bed
- Whirlpool Refrigerator
- Exterior Shower
You won't want to travel any other way once you step inside this motorhome! The master suite has a king bed slide for a good night's rest across from a dresser with a Samsung LED TV and a safe for your valuables. Attached to the bedroom is your very own full rear bathroom which has a 45" x 36" shower with a seat, a dual sink vanity for two to get ready at once, a wardrobe with adjustable shelves on one side and a Splendide stacked washer and dryer on the other, and an emergency exit door behind the toilet. The chef will have everything they need to prepare delicious home cooked meals including a stainless steel 30" convection microwave with air fryer feature and a Whirlpool 19.7 cu. ft. refrigerator to keep the perishables fresh, plus the half bathroom is by the kitchen for quick bathroom breaks while cooking. Enjoy your meals at the hide-a-leaf dinette and relax on either the 87" hide-a-bed sofa or the 68" jackknife sofa while watching your favorite movies on the Samsung LED TV on power lift!
Explore the world in peak luxury with any one of these Newmar Mountain Aire Class A diesel motorhomes! They are exclusively built on a Spartan K3 tag axle chassis with a 525 HP and 1,695 lb./ft. of torque to make them easy to drive. Their industry-exclusive full paint Masterpiece Finish comes in four different color options each of which will turn heads down the highway. Hydraulic leveling jacks make set up quick and easy, and the fiberglass roof with integrated gutter rail will help to keep water away from your unit. The aluminum-frame sidewalls and roof construction are covered by the gel-coated fiberglass exterior sidewalls, front, and rear caps. You will also find finer amenities, features, and options all throughout the interiors. Come find the best one for you today!
Features
Standard Features (2024)
Exterior
- Full-Paint Masterpiece Finish™ with Cut & Buff with Beta Fusion Protection on Front Cap
- Lighted Newmar Badge in Front Grill
- Convex Exterior Mirrors with Remote Control, Defrost, Turn Signals and Side View Cameras
- Chrome Power Baggage Door Locks, Keyless Entrance Door with Touch Pad and Door Bell
- Entrance Door with Automatic Step
- Rear Hitch for Towing Car
- Assist Handle at Entrance Door
- Mud Flaps
- Rear Protective Tow Guard with Stainless Steel Newmar Name Cutout
- Undercoating
- Hydraulic Leveling Jacks
- Stainless Steel Exterior Trim Pieces and Entrance Door Kick Panel
- Storage Bins in Pegboard Compartment
Optional
- Stainless Steel Trim Kit for Exterior Compartment Doors
- Flag Pole Bracket
- Storage Tray 24 X 58 Power Location-Bay 2
- Storage Tray 26 X 90 Power Location-Bay 2
- Storage Tray 26 X 91 Non-Power, Location Bay 2
- Storage Tray 27 X 56 Non-Power Location-Bay 2
- Storage Tray 27 X 56 Non-Power Location-Bay 3
- Storage Tray 29 X 58 Power Location-Bay 3
- Storage Tray 40 X 90 Power, Location-Bay 2
- Storage Tray 40 X 90 Power, Location-Bay 3
- Storage Tray 42 X 91 Non-Power, Location-Bay 2
- Storage Tray 42 X 91 Non-Power, Location-Bay 3
- Storage Tray 43 X 56 Non-Power, Location-Bay 3
- Storage Tray 43 X 56 Non-Power, Location-Bay 4
Construction
- Fiberglass Roof and Integrated Gutter Rail
- Gelcoated Fiberglass Exterior Sidewalls, Front and Rear Caps
- Aluminum-Frame Sidewalls & Roof Construction, 16" on Center
- 5/8" Foam Insulation Laminated in Sidewalls & Ceiling
- Polar Pak R19 Batten Insulation on Roof
- Automatic Mechanical Lock Arms on Non Hydraulic Slideout Rooms-Paddle Style
- Egress Door with Ladder System
Chassis
- Spartan K3 Tag Axle 525 HP
- Air Leveling System
- Aluminum Wheels
- Electronic Chassis Information Center in Dash
- Electronic Stability Control
- Cruise Control
- Comfort Drive™ Steering with Power Column & Adjustable Control
- Steering Wheel Nine Function Switch Pod in Center on Spartan® Chassis
- Recessed Fuel Fills with Crossover to Fill from Either Side
- Back-Up Alarm
- Anti-Lock Braking System
- Chassis Battery Disconnect
- Automatic Headlights ON/OFF
- Push Button Engine Start
- Glass Dash Instrumental Panel
- On Guard Collision Mitigation Adaptive Cruise System with Adj. Following Distance Control on Spartan Chassis
- Tire Pressure Monitoring on Tag Axle Chassis
- Mobile Eye Lane Tracking and Lane Departure Warning System
- Valid Digital Glare Free Dash on Spartan® Chassis
- Valid Generation 3 TPMS System on Spartan® Chassis
Optional
- Curt Spectrum Integrated Brake Control on Spartan Chassis
Mechanical and Electrical
Windows, Awnings, and Vents
- Frameless Double-Pane Tinted Safety-Glass Windows
- Fantastic® Vent with Rain Sensor in Kitchen, Bathroom and Enclosed Stool Room
- Hardwood Louvered Cover on Fantastic® Vent in Kitchen
- Skylight Above Shower*
- Girard Package-Two Nova Side Awnings, Slideout Covers, Entrance Door & Power Window Awnings
- One Piece Tinted Windshield
- Driver Side Power Window
- Large Non-Ventilated Living Room and Dinette Windows
Optional
- Kitchen Window
Air Conditioning and Heating
- Three 15K BTU Penguin™ Heat Pump Central Air Conditioners with Remote Control Thermostat on 41’ and 45’ Floor Plans
- Two 15K BTU Penguin™ Heat Pump Central Air Conditioners with Remote Control Thermostat on 38’ Floor Plan
- Chinook Dual Loop Heat with Continuous Hot Water
- Dash Heater and Air Conditioner
- Driver & Passenger Dash Overhead Ventilation System
- Wall Mounted Sensors for Heating and Air Conditioning
- Roof Air Conditioning Drainage System
- Electric Radiant Heat Installed Below Main Floor Tile
Electrical
- 10 Kw Cummins Onan® Diesel Generator on 38’ Floor Plans
- 12.5 Kw Cummins Onan® Diesel Generator on 41' and 45' Floor Plans
- 50 Amp Electrical Service with Flexible Cord with Automatic Transfer Switch
- Eight 6-Volt House Batteries
- Battery Disconnect Switch for House Battery
- 10 Watt Solar Panel to Charge Chassis Battery
- 3000 Watt True Sine Inverter
- 12 Volt Auxiliary Receptacle on Dashboard
- Emergency Engine Start Switch
- Engine Block Heater
- Energy Management System
- Exterior Security Lights
- Midship Side Turn Signals
- LED Lights Recessed in Ceiling and Underneath Overhead Cabinets
- Accent Lights in Feature Ceiling, Slideout Fascia Trim and Lambrequins
- LED Lighting in Pull Out Pantry, Kitchen and Bathroom Base Cabinets
- LED Lights in Exterior Storage Compartments on Automatic Switches
- LED Lights Installed Under Door Side Slideouts
- Lights in Wardrobes
- Manually Operated Hold-To-Run Slideout Switch
- Automatic Generator Start on Low Battery or Temperature Setting
- Cable TV Connection
- Interior Courtesy Lights
- USB Charger at Dinette & Bedroom Night Stand
- USB Outlet at Dash for Driver Use
- Power Rewind Wheel with 50’ Cord*
- Recessed Docking Lights
- KIB Touch Screen Interior Light and Shade Controls
- Secondary Multiple Touch Screen in Bedroom
- All Lights Off Function in Bedroom
- Silverleaf® Multiplex Electrical Wiring System
- Slideout Switch Manually Operated Hold to Run
- Rozie Remote Internet Connection for Silverleaf Multiplex System
- System Control App to Control Numerous Features from Personal Device
- Solar Prep with Six Gauge Wire from Roof to House Battery Compartment
- Spare Fuses in Chassis and House Fuse Panels
- Wireless Phone Charger Pad in Driver Area
- Wireless Charging Mat Built into Passenger Console
- 110 Volt Recept in Bed Overhead with Two Pass Through Ports
- 110 Volt/USB Outlet at Head of Each Bunk*
- Dimmable with Adjustable Aim Reading Lights at Head of Bed
- Transfer Switch with Surge Protector
- Dash Radio, Cameras and Monitors to Power-up from both House Batteries and Ignition
Optional
- LED Strip Lighting Installed Under Off Door Side Slideouts
- Four Flexible 100 Watt Solar Panels on Roof
- Lithium Ion 640 AHR Battery System with Two 3000W Pure Sine Inverters
- Lithium Ion 960 AHR Battery System (Three Batteries) with Two 3000W Pure Sine Inverters
Plumbing
- Demand Water System
- Sewage Holding-Tank Rinse
- Dometic® 321 China Bowl Stool or Macerator Stool*
- Aqua Miser Shower System
- Tiled Shower Walls with Glass Door
- Soap Dispenser in Shower
- Fold Down Shower Seat
- Water Filter for Entire Unit
- Exterior Shower
- Auto Fill for Fresh Water Tank
- Power Water Hose Reel
- Hot Water Line to Generator Area*
- Bladder Tank for Water Pump System
Optional
- Assist Handle in Shower
- RV Sanicon Turbo System
Interior
Cabinets and Furniture
- Bermuda Glazed Maple Hardwood Cabinets with Raised Panel Doors with Matte Finish
- Concealed Hinges on Cabinet Doors
- Super Polished Solid Surface Countertop in Kitchen with Under Mounted Stainless Steel Sink and Sink Covers
- Super Polished Solid Surface Countertop in Bathroom and Bedroom
- Cooktop Cover Flush, Matching Countertop Material
- Lifts on Bed Top
- Passenger Seat Work Station
- Pullout Pantry Shelves*
- Push to Release Drawer Slides in Pantry
- Soft Close Cabinet Doors*
- Pantry with Space for Serving Trays and Bakeware
- Drawers with Dove Tail Sides with Self Closing Full Extension Ball Bearing Guides
- Villa Ultra Leather Sofa and Driver/Passenger Seats with Integrated Seat Belts
- Driver Seat with Vibrator for Haptic Feedback
- Driver and Passenger Seats Heated with Power-Lumbar, Recline, Footrest and Standard Width Passenger Seat
- Plush Pillow Top Mattress*
- Extended Rotation Concealed Hinge for Washer/Dryer Cabinet Door
- Side Folding Hide-A-Bed Sofa with Memory Foam Mattress*
- Full Height Wardrobes Beside Lav*
- Mesh Cell Phone Holder at Each Bunk Bed*
- Molded Silverware Divider Tray
- Dinette Euro Booth with Two Table Leaves and Two Folding Chairs*
- Bed Base Power Incline Retract with R5 Air Mattress on 3825 Floor Plan
Optional
- Glacier Glazed Maple Hardwood Cabinets with Raised Panel Doors with High Gloss or Matte Finish
- Bermuda Glazed Maple Hardwood Cabinets with Raised Panel Doors-High Gloss
- Driftwood Glazed Maple Hardwood Cabinets with Raised Panel Doors with High Gloss or Matte Finish
- Sable Maple Hardwood Cabinets with Raised Panel Doors-High Gloss Or Matte Finish
- R5 Radius Corner Air Mattress
- Power Extenda Flex Dinette
- Buffet Dinette
- Combination Desk/Dinette with Buffet Table, Two Fixed/Two Folding Chairs
- Combination Desk and Dinette with Buffet Table, Two Fixed and Two Folding Chairs
- Dinette Convertible with Two Fixed and Two Folding Chairs that Face Window
- Euro Booth Dinette with Two Table Leaves and Two Folding Chairs
- Two Recliners with Lampstand and Reading Lights
- Two Ottomans*
- Passenger Seat Queen Size
- Powered Theater Seating 74"
- Powered Theater Seating 84"
- Powered Theater Seating 87”
Appliances
- Stainless Steel 30” Convection Microwave with Air Fryer Feature
- All Electric Cooktop Flush Mount Induction
- Air Horns
- Whirlpool® 19.7 Refrigerator
- Splendide Two-Piece Stacked Washer/Dryer
- Dometic 3.0 Cf Freezer on Pullout Tray in Exterior Baggage Compartment*
- Storage Shelf Above Freezer
- Central Vacuum with Tool Kit
Optional
- Dishwasher in Drawer with Stainless Steel Front
Interior
- Designer Feature Ceiling and Cathedral Ceiling with Added Height on Rear Bath Floorplans*
- Tile Floor in Kitchen, Bathroom, Bedroom and Living Area
- Auto Motion Power Shades and Lambrequins
- Auto Motion Power Shades for Windshield and Driver/Passenger Side Windows
- Hardwood Window Sills
- Hardwood Raised Panel Interior Passage Doors
- Flush Handles on Swinging Bath Doors
- Interior Assist Handle at Main Entry Door
- Fitted Non-Quilted Bedspread with Accent Pillows
- Safe Located in Bedroom Wardrobe
- Waste Basket in Kitchen Base Under Sink
- Maximized Shoe Storage Shelves Recessed in Rear of Wardrobe
Entertainment
Audio and Video
- Samsung LED TV in Living and Bedroom Areas* (TV Sizes Vary Per Floorplan)
- Samsung 43” 4K LED TV in Front Overhead
- Samsung 50” 4K LED TV on Televator in Living Area*
- Bose® 500 Subwoofer
- Bose® 700 Sound Touch Sound Bar in Livingroom
- Xite Dash Radio with Apple Carplay, 10” Dual Monitor with Nav-N-Go Navigation
- Xite HD 360 Camera System with Predictive Grid Lines and Tri-View Rear Camera
- Rearview Color Monitor System with Audio
- Winegard Rayzar Automatic Digital TV Antenna
- Satellite Dish Prep on Roof
- Two Bedroom Radio Speakers
- TV Jack and 110 Volt Recept in Door Side Exterior Storage Compartment
- Cat 6 TV Cables
- Infra Red Repeater System to Operate Audio/Visual Components
- WiFi Ranger Tenton/Poplar LTE
- 10 Bc Fire Extinguisher, Smoke Detector, Propane and Carbon Monoxide Detector
Optional
- Sirius Satellite Radio Capability (Does not include monthly subscription)
- Exterior Entertainment Center in Sidewall with Samsung 43” 4K LED TV and Soundbar
- Exterior Entertainment Center in Storage Compartment with Samsung 43” 4K LED TV & Bose® Soundbar
- Wifi System Everest with Aspen Interior Router
- Winegard Automatic Open Face Satellite Dish-For Dish HD & Bell HD TV
- Winegard Automatic Open Face SWM Satellite Dish-for Direct TV Std/HD & In-Motion Direct TV Std, Dish Std/HD
- Winegard Automatic Open Face Satellite Dish & Winegard In-Motion for Dish Network
- Winegard Automatic Open Face Satellite Dish for Direct TV
- Extra Monitor on Passenger Side
- Rear Camera (2) Prep for Use with Stacker Trailer
- Universal Toll Module
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
Save your favorite RVs as you browse. Begin with this one!
Loading
Chase Motorsports Coach & Trailer is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @270-556-8461 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.
Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.
