Floorplan - 2017 Newmar Essex 4553
-
-
-
-
1 of 6
+6-
Sleeps 5
-
3 Slides
-
Bath and a HalfRear Bath
-
45ft Long
-
47,200 lbs
-
Raven, Novara, Modena, Windsor

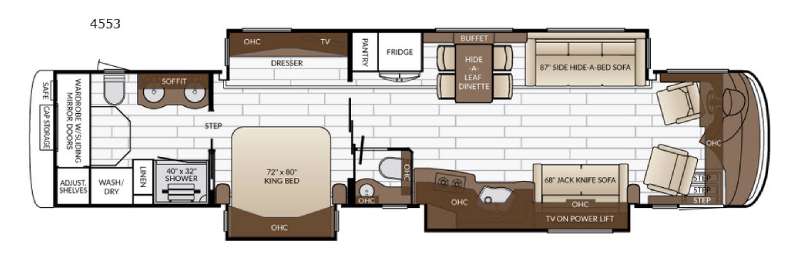

4553 Floorplan
4553 Floorplan
Specifications
Specifications
| Sleeps | 5 | Slides | 3 |
| Length | 44 ft 11 in | Ext Width | 8 ft 6 in |
| Ext Height | 13 ft 4 in | Int Height | 7 ft |
| Interior Color | Raven, Novara, Modena, Windsor | Exterior Color | Raven, Novara, Modena, Windsor |
| GVWR | 54000 lbs | Dry Weight | 47200 lbs |
| Cargo Capacity | 6800 lbs | Fresh Water Capacity | 105 gals |
| Grey Water Capacity | 80 gals | Black Water Capacity | 60 gals |
| Furnace BTU | 50000 btu | Fuel Type | Diesel |
| Miles | 18792 | Engine | Cummins 600 HP |
| Chassis | Freightliner | Convection Cooking | Yes |
| Cooktop Burners | 2 | Number of Awnings | 2 |
| AC BTU | 45000 btu | Washer/Dryer Available | Yes |
| Electrical Service | 50 amp |
Description
Description
You will love that the Essex 4553 motor home by Newmar has triple slides, and one of the slides is a wall slide which really helps to open up the living space. You will also find a bath and a half, king bed, and plenty of storage space for all of your necessary items.
As you enter this motor home, you will love the openness and spaciousness of the kitchen/living area. Both of the driver and passenger seats swivel around to provide additional seating in the front living area. The slide out along the door side has a 68" power jack knife sofa with a power lift TV above. There is also a large kitchen sink, two burner range, drawer dishwasher, and an appliance garage. Also above this slide there is an overhead cabinet which provides great storage. Just past this slide, down the hall you will come to the half bath.
The wall slide out located along the driver side of the motor home has a 87" hide-a-bed sofa, buffet, hide-a-leaf dinette, refrigerator, large pantry, and in the bedroom the slide continues with a dresser and overhead TV.
Also in the bedroom you will find another slide out with a king bed an overhead cabinet, and two nightstands.
The master bathroom has two sinks, toilet, wardrobe with sliding door, adjustable shelves, washer dryer, linen cabinet for towels or toiletries, and a 40" x 32" shower, and so much more!
Features
Features
Standard Features (2017)
Exterior
- Full-Paint Masterpiece Finish™ with Cut & Buff and Nano Shield Protection on Front Cap
- Chrome Power Baggage Door Locks, Keyless Entry Door with Touch Pad & Door Bell
- Convex Exterior Mirrors with Remote Control, Defrost, Turn Signals and Side View Cameras
- Entrance Door with Automatic Step
- Rear Hitch for Towing Car
- Assist Handle at Entrance Door
- Air Horns
- Mud Flaps
- Rear Protective Tow Guard with Stainless Steel Newmar Name Cut Out
- Undercoating
- Hydraulic Leveling Jacks
- Stainless Steel Exterior Trim Pieces and Entrance Door Kick Panel
- Dual Latch Front Entrance Door with Power Flush Stepwell Cover
- Holding Tank Levels Displayed in Exterior Water Works Compartment
Options
- Patio Hammock Package
- Large Storage Tray with Access from One Side
- Pass Through Storage Tray with Access from Either Side
- Power Pass Through Storage Tray with Access from Either Side
- Stainless Steel Trim Kit for Exterior Compartment Doors
Construction
- Fiberglass Roof with Walkable Decking and Integrated Gutter Rail
- Gelcoated Fiberglass Exterior Sidewalls, Front and Rear Caps
- Aluminum-Frame Sidewalls & Roof Construction, 16" on Center
- 5/8" Foam Insulation Laminated in Sidewalls & Ceiling
- Polar Pak R19 Batten Insulation on Roof
- Mechanical Lock Arms on Non Hydraulic Slideout Rooms
Windows, Awnings, & Vents
- Frameless Double-Pane Tinted Safety-Glass Windows
- Fantastic® Vent with Rain Sensor in Kitchen and Bathroom
- Hardwood Lovered Cover on Fantastic® Vent in Kitchen
- Skylight Above Shower ( 4525 Floorplan)*
- Two Girard® Nova Side Awnings with Wind Sensor, Remote Control & LED Lights
- Girard® Slideout Covers, Entrance Door & Power Window Awnings*
- One Piece Tinted Windshield
- Egress Door in Rear Bathroom*
- Driver Side Power Window
Options
- Window Above Bed Concealed Behind Sliding Doors
Chassis
- Cummins® Connected Diagnostic System (Does Not Include Monthly Subscription)*
- Air Leveling System
- Polish Free Aluminum Wheels
- Electronic Chassis Information Center in Dash
- Cruise Control
- Comfort Drive™ Steering with Power Column & Adjustable Control
- Power Tilt & Telescope VIP Smart Steering Wheel
- Electric Stability Control
- Recessed Fuel Fills with Crossover to Fill from Either Side
- Back-Up Alarm
- Anti-Lock Braking System
- Memory Settings for Driver Seat Pedals, Steering Column & Mirrors
- Tire Pressure Monitor System
- Trip Travel Information-Displayed Onto Rear View Monitor Screen
Options
- Freightliner® Passive Steer Tag Axle SL Chassis with 600Hp Cummins ISX Engine
- Spartan® Passive Steer Tag Axle K3 Chassis with 600Hp Cummins ISX Engine
- Vorad® Adaptive Cruise System
Air Conditioning & Heating
- Three 15M Penguin™ Heat Pump Central Air Conditioners with Remote Control Thermostat
- Hydronic Zone Diesel and/or Electric Heat with Continuous Hot Water
- Dash Heater and Air Conditioner
- Driver & Passenger Dash Overhead Ventilation System
- Roof Air Conditioning Drainage System
Options
- Electric Radiant Heat Installed Below Main Floor Tile
Electrical
- 12.5 kW Cummins Onan® Diesel Generator with Auto Changeover on Hydraulic Slide Out Tray
- 50 Amp Electrical Service with Flexible Cord with Automatic Transfer Switch
- Six 6-Volt House Batteries on Pullout Tray
- Battery Disconnect Switch for House Battery
- 10 Watt Solar Panel to Charge Chassis Battery
- 3000 Watt True Sine Inverter
- 12 Volt Auxiliary Receptacle on Dashboard
- Emergency Engine Start Switch
- Engine Block Heater
- Exterior Security Lights
- Midship Side Turn Signals
- LED Lights Recessed in Ceiling and Underneath Overhead Cabinets
- Accent Lights in Feature Ceiling, Slideout Fascia Trim, and Lambrequins
- LED Lighting in Pull Out Pantry, Kitchen and Bathroom Base Cabinets
- LED Lights in Exterior Storage Compartments on Automatic Switches
- LED Docking Lights with Stainless Steel Trim
- Manually Operated Hold-To-Run Slideout Switch
- Automatic Generator Start on Low Battery or Temperature Setting
- Cable TV Connection
- Interior Courtesy Lights
- Power Rewind Wheel with 50’ Cord
- Secondary Multiple Touch Screen in Bedroom
- Silverleaf® Multiplex Electrical Wiring System
- Solar Prep Rated for 1200 Watts with Six Gauge Wire from Roof to House Battery
- High Power USB Charger at Dinette and Bedroom Night Stands
- Wireless Charging Mat in Dash and Each Nightstand Exterior LED Accent Lights Above Rear Tow Guard
- LED Lights Installed Under Door Side Slideouts
Options
- 30 Amp/120 Volt Cord Connection for Stacker Trailer
- 4 Sunforce Flexible 95 Watt Solar Panels on Roof
- Roof-Mounted Spot Light
Plumbing
- Demand Water System
- Sewage Holding-Tank Rinse
- Dometic® Concerto Electric Flush or Macerator Stool*
- Full Tiled Shower Walls and Floor
- Fold Down Shower Seat
- Assist Handle in Shower
- Water Filter for Entire Unit
- Exterior Convenience Station
- Auto Fill for Fresh Water Tank
- Power Water Hose Reel
- ManaBloc Plumbing System
- Touch Kitchen Faucet
Options
- Black China Bowl Stools
- RV Sanicon Turbo System
- Hot Water Line to Generator Area
Interior
- Designer Feature Ceiling and Cathedral Ceiling with Added Height on Rear Bath Floorplans*
- Tile Floor in Kitchen, Bathroom, Bedroom and Living Area
- Auto Motion Power Window Shades and Lambrequins
- Auto Motion Power Shades for Windshield and Driver/Passenger Side Windows
- Polished Solid Surface Window Sills
- Shoe Storage Shelves Recessed into Rear Cap Wardrobe
- Dual Interior Assist Handles at Main Entry Door
- Quilted Bedspread, Bedscarf and Accent Pillows
- Safe Located in Bedroom Wardrobe
- 10 Bc Fire Extinguisher, Smoke Detector, Propane and Carbon Monoxide Detector
Options
- Carpet in Place of Bedroom Tile Located on Main Floor and Slideout Floor Area Only
- Silhouette Power Window Shades
- Sable Maple Hardwood Cabinets with Fully Overlay Doors
- Concealed Hinges on Cabinet Doors
- High Polished Solid Surface Countertop in Kitchen with Under Mounted
- Stainless Steel Sink and Sink Covers
- Lifts on Bed Top
- Passenger Seat Work Station
- High Polished Solid Surface Countertop in Bathroom and Bedroom
- Adjustable Pullout Pantry Shelves*
- Drawers with Dovetail Sides and Full Extension Ball Bearing Guides
- Villa® Ultrafabrics Sofa and Front Seats with Integrated Seatbelts
- Heated Front Seats with Power-Lumbar, Recline, Footrest & Queen Sized
- Passenger Seat
- Sleep Number® Premier Radius Corner Air Mattress
- Cedar Paneling in Bedroom Wardrobe
Options
- Carmel Glazed Cherry with High Gloss Cabinets with Fully Overlay Doors
- Ginger Glazed Cherry with High Gloss Cabinets with Fully Overlay Doors
- Pearl Glazed Cabinets with Fully Overlay Doors
- Special Order Sable Maple Hardwood Cabinets with High Gloss Finish*
- Special Order Ginger Glazed Maple Cabinets with High Gloss Finish*
- Overhead Cabinet Above Dinette
- Overhead Cabinet Above Off Door Side Sofa
- Overhead Cabinet in Dinette/Living Room Slideout
- U-Dinette with Power Adjusted Table
- Power Extenda Flex Dinette
- Sofa/U-Dinette Ensemble
- Combination Desk with Buffet Table, Two Fixed/Two Folding Chairs
- Door Side Fold & Tumble Sofa with Air Mattress, Off Door Side Power
- Extenda L Sofa
- Door Side Televator TV, Off Door Side Two Recliners with Lampstand
- Door Side Dormi Sofa with Air Mattress, Off Door Side Power Extenda L Sofa
- Door Side Dormi Sofa with Air Mattress, Off Door Side Recliners with Lampstand
- Door Side Fireplace with 48” TV on Televator in Place of Sofa
- Power Flip Up Sofa in Bed Base
- Power Incline Head of Bed
- Euro Booth Dinette
- 84” Extenda L Sofa in Place of 84” Hide-A-Bed Sofa
- 84” Extenda L Jackknife Sofa in Place of 84” Hide-A-Bed Sofa
- Fireplace Below Living Room TV on 4584 floorplan*
- Hide-A-Bed Sofa/Euro Booth Dinette Ensemble
- Off Door Side Two Recliners with Lampstand and Door Side Hide-A-Bed
- Sofa/Euro Booth Dinette Ensemble
- Power Extenda L Jackknife Sofa in Place of Hide-A-Bed Sofa
- Power Extenda L Sofa in Place of Hide-A-Bed Sofa
- Side Folding Hide-A-Bed with Gel Mattress
Appliances
- Convection Microwave with Recessed Two Burner Gas Cooktop
- Whirlpool® Two Piece Stacked Washer & 220 Volt Dryer
- Whirlpool® Stainless Steel 19.7 Cf Refrigerator with Water Dispenser
- Dometic 3.77 Cf Freezer on Pullout Tray in Exterior Baggage Compartment
- Flush Gas Cooktop Cover of Matching Countertop Material
- Fireplace in Living Area*
- Central Vacuum with Tool Kit
Options
- 30” GE Profile Advantium Microwave
- All Electric, Recessed and Portable Induction Cooktop and Two Extra Batteries
- Dishwasher in Drawer with Stainless Steel Front
- Sony® LED TV and Blu-Ray Disc Player in Living and Bedroom Areas* (TV Sizes Vary Per Floorplan)
- Sony® 48” LED TV on Televator in Living Area*
- Bose® Solo 15 Speaker with Bluetooth in Bedroom
- Bose® CineMate Home Theater System with Universal Remote and Bluetooth in
- Living Area
- Dash Radio with Touch Screen Navigation, Dual Monitors, Harman/JBL 360 Watt Sound System and Subwoofer
- Winegard Rayzar Automatic Digital TV Antenna
- Satellite Dish Prep on Roof
- TV Jack and 110 Volt Recept in Door Side Exterior Storage Compartment
- Cat 6 TV Cables
- Infrared Repeater System to Operate Audio/Visual Components
- Sony® Tablet-with Control of AV Equipment, Lights, Shades, Keyless Entry and Silverleaf® App
- Internet Connectivity for Remote Access to Motorhome
- Wireless Router
- SiriusXM® Satellite Radio with Antenna (Does not include monthly subscription)
Options
- Sony® 40” LED TV in Front Overhead
- Exterior Entertainment Center in Sidewall with Sony® 40” LED TV and Soundbar*
- Exterior Entertainment Center in Storage Compartment with Sony® 40” LED
- TV & Soundbar
- Winegard® Automatic Dome Satellite
- Winegard® Automatic Open Face Satellite
- Winegard® In Motion Satellite
- KVH In Motion Dome Satellite
- Two 11” LCD Flip Down Monitor/DVD Player with Headphone (4598 Bunk Floorplan)*
- Extra Monitor for Navigation on Passenger Side
- Rear Camera Prep for Use with Stacker Trailer
- Remote Control Rear View Color Camera
- Security System
See us for a complete list of features & available options!
All standard features and specifications are subject to change.
Favorite RVs
Save your favorite RVs as you browse. Begin with this one!
What Other Customers Are Saying
We are here to help!
Loading
Chase Motorsports Coach & Trailer is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @270-556-8461 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.
Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.
